Home Theater and Cinema Dubai | JVC, Trinnov, Crestron, Civil Defence Compliant

Detailed review

What a Dubai cinema room actually delivers when you do it right.

We finish three AED 250 to 500k cinema rooms every quarter that another firm started and walked away from. A Tilal Al Ghaf Elysian basement where AED 410,000 of JBL Synthesis SCL-1, a JVC NZ800 and a Kaleidescape Strato C landed but a Trinnov calibration was never run, the lead programmer left the company, and the owner went eleven months with no calls returned. An Emirates Hills Sector W villa with a Crestron NVX matrix that added 14 ms of HDMI lag and made the PS5 feel wrong on FIFA. A Palm Jumeirah Garden Homes media room where a lamp-based DLP projector turned magenta-green at month 18 because Dubai humidity ate the colour wheel. A Dubai Hills Fairway basement that Civil Defence rejected at completion because the heavy acoustic door was not FD60S rated and the EN 1838 emergency luminaire was missing. Four villas, four versions of the same broken handover.

We rebuild the room one installer deep. JVC DLA-NZ900 on a sealed laser optical path that survives a 95% humidity Marina summer, JBL Synthesis SCL-1 LCR behind a Stewart Filmscreen StudioTek 130 G4 or Screen Excellence Enlightor Neo, Trinnov Altitude 16 calibrated against a nine-position REW pass with a UMIK-2, four JL Audio Fathom f113 v2 subs in a Welti corner pattern on Regufoam pucks. Lutron RadioRA 3 with Ketra D3 cove lighting on seven scenes. A small Crestron Home driver queries the IACAD prayer-time API, fades the audio over 10 seconds at Adhan, and resumes after Maghrib. We file the Emaar, My Nakheel, Damac, Meraas or Trakhees NOC in your name. From AED 25,000 family-room upgrade to a AED 800,000 Al Barari reference build.

One Tap, Twelve Channels

JVC laser on a sealed optical path, JBL Synthesis SCL-1 behind a Screen Excellence Enlightor Neo, Trinnov Altitude 16 calibrated against nine REW positions, Adhan-aware pause on every build. One Crestron Home tap starts the movie.

key benefits:

Trinnov Altitude 16 calibration with a written REW report and a 30-day return tune.
DCD FLSCOP 2018 FD60S door and EN 1838 emergency luminaire on every basement.
Hilti PS 50 ferroscan before any post-tension slab Atmos coring in apartments.
Adhan scene wired to the IACAD prayer-times API, opt-in per household.

Speak with an expert

A Day At Your Villa

“Pause for Maghrib, resume after Iftar.”

“Movie at 8, kids’ bedtime at 9.”

“Friday family screening, twelve seats reserved.”

Adhan fade running, audio holding, scene resumes after

“Drop the lights to one percent for the post-roll.”

“Apple TV, not the projector remote.”

Hilti scan complete, no tendons in the Atmos coring path

“Hilti scan before any ceiling cuts.”

One tap, twelve channels

Adhan-aware on day one

Civil Defence compliant on first walk

Smart Cinema

"Maghrib fade triggered at 6:42pm, twelve channels grouped, JVC laser warm, room at NC-25, DCD acceptance filed."

Book a free site survey

Rated 4.97/5 by Dubai Homeowners

Nine layers of villa cinema.

Nine layers, one installer, one handover folder. Calibrated for villas in Dubai Hills and Tilal Al Ghaf, basements in Emirates Hills and Al Barari, towers in Marina and Bluewaters Bay.

Cinema Room Design & Acoustics

We design the room around your villa shell. Double-stud walls with 80 kg/m³ Rockwool RW3 and RC-1 channel, a riser to the 61% rule, GIK Acoustics bass traps in every corner, RPG diffusers on the rear wall.

Reference Projection

JVC DLA-NZ900 D-ILA laser for Dubai humidity, Sony VPL-XW8000ES SXRD where lens-shift demands it, Barco Loki RGB laser for Emirates Hills and Palm Signature reference rooms. Every unit on the regional dealer warranty path.

Acoustic-Transparent Screens & LCR

Stewart Filmscreen StudioTek 130 G4 for blackout rooms. Screen Excellence Enlightor Neo when JBL Synthesis SCL-1 LCR sits behind the screen on isolated brackets in a 9.4.6 reference build.

Dolby Atmos & DTS:X Calibration

A nine-position REW pass on a UMIK-2 microphone, a Trinnov Altitude 16 Optimizer pass, Welti-pattern sub integration, 75 dB(C) pink noise per channel, LFE +10 dB hot per Dolby spec, written report.

Acoustic Treatment & Isolation

Floating floor on Regufoam pucks for any apartment above another unit. Four-corner bass traps. STC-50 acoustic door with a Lorient drop seal. Duct silencer between FCU and diffuser to hit NC-25 at the seat.

Cinema Lighting (Lutron + Ketra)

Lutron RadioRA 3 for villa builds, HomeWorks QSX for reference rooms, Ketra D3 tunable-white at the cove and step LEDs. Seven scenes from Bright Clean to Movie to Pause programmed and saved before handover.

Adhan-Aware Pause Logic

A small Crestron Home or Control4 driver queries the IACAD prayer-times feed five times daily, fades movie audio over 10 seconds at Adhan, holds, then fades back. Optional per household.

Civil Defence Fire Compliance

FD60S fire doors, NFPA 701 acoustic fabrics, EN 1838 emergency luminaires with 3-hour batteries, EN ISO 7010 photo-luminescent exit signage, Tenmat FF130 enclosures on every in-ceiling Atmos penetration.

Kaleidescape & Sources

Kaleidescape Strato C with a Terra server (8 to 88 TB) for lossless 4K, Apple TV 4K for streaming, Panasonic DP-UB9000 for UHD discs, all on a single Trinnov Altitude input map and one Crestron page.

Our Working Approach

How we build your cinema.

A team that surveys the slab, scans for tendons, files your compound NOC and pre-submits to Civil Defence before a single cable is pulled.

We start with a senior designer and an acoustic engineer on site for a full day. We laser the room shell with a Bosch GLM 50-27 CG, pull a baseline ambient noise reading on a Larson Davis or NTi XL2 to hit our NC-25 target at the seat, and run a REW sweep with a UMIK-2 to map the room modes. On any apartment in Marina, JBR, Downtown Burj Vista, Bluewaters Bay or Address Sky View we walk the slab with a Hilti PS 50 ferroscan before a single in-ceiling Atmos position is even drawn, because a sheared post-tension tendon costs an entire neighbouring ceiling and a Trakhees structural incident report you do not want to file.

Then we design the room. Double-stud walls with a 4 inch cavity, 80 kg/m³ Rockwool RW3 fill, RC-1 resilient channel, two layers of 16 mm fire-rated gypsum with Green Glue between, target STC-50 wall-to-wall. A floating floor on Regufoam pucks where the cinema sits above another unit. Sub layout to a Welti corner-and-midpoint pattern so the bass is even at every seat in both rows. Screen sizing to a 36° viewing angle from the front row, riser height to the 61% rule, eight Cineak Strato seats on a sand-filled second-row riser.

Before site work begins we file the compound no-objection letter in your name. Emaar Community Management for Dubai Hills and Arabian Ranches III, My Nakheel for Palm Signature and Garden Homes, Damac Living for Damac Hills and Tilal Al Ghaf, Meraas for Bluewaters Bay, Trakhees CD plus Trakhees Building for Palm fronds. In parallel we pre-submit the FD60S fire door datasheet, the EN 1838 emergency luminaire spec, NFPA 701 fabric certificates and the Tenmat FF130 in-ceiling enclosure layout to Dubai Civil Defence. The DCD inspector arrives at closeout and walks straight to acceptance.

On commissioning week a Trinnov-certified calibrator runs the Altitude 16 Optimizer pass against a nine-position REW measurement, with Dirac Live ART as the alternative on Storm Audio rigs. We programme the Adhan scene against the IACAD prayer-times API, build the Crestron Home or Control4 macro that picks Apple TV 4K, Kaleidescape Strato C, the OSN Plus IPTV box or the Plex library on one page the housekeeper can run, and hand over a printed and digital folder with REW plots, the Trinnov calibration report, ECAS certificates, NOC letters, DCD acceptance and warranty cards. We come back at day 30 to retune after the room settles.

"We paid AED 410,000 to another firm. The Kaleidescape sat in a cupboard for eleven months. They picked it up and finished it in six weeks."

"Civil Defence walked the basement on the first visit and signed it off. The FD60S door and the exit luminaire were already in."

12 Channels One Tap

"The audio fades at Maghrib by itself, the kids stop arguing about the remote, and the housekeeper runs Friday family movie night now."

100% DCD Approved

"Trinnov calibration with the written REW report on handover day. The room sounds like a cinema, not a living room with speakers."

"Hilti scan before anyone touched the slab. Marina tower neighbours never knew we added twelve channels to the ceiling."

"We paid AED 410,000 to another firm. The Kaleidescape sat in a cupboard for eleven months. They picked it up and finished it in six weeks."

"Civil Defence walked the basement on the first visit and signed it off. The FD60S door and the exit luminaire were already in."

12 Channels One Tap

"The audio fades at Maghrib by itself, the kids stop arguing about the remote, and the housekeeper runs Friday family movie night now."

100% DCD Approved

"Trinnov calibration with the written REW report on handover day. The room sounds like a cinema, not a living room with speakers."

"Hilti scan before anyone touched the slab. Marina tower neighbours never knew we added twelve channels to the ceiling."

Compare the difference

Why homeowners choose us.

A Trinnov-certified engineer runs a nine-position REW pass with a UMIK-2 measurement microphone

One Crestron Home tap fires Apple TV, Kaleidescape Strato C, the JVC laser, the Lutron lights and the AVR

Adhan-aware pause through the IACAD prayer-times API fades audio over 10 seconds and resumes after Maghrib

JVC DLA-NZ900 D-ILA laser projector with a sealed optical path built for 95% Dubai humidity

Double-stud STC-50 walls and a Regufoam floating floor so the JBR neighbour does not call 901 at 11pm

DCD FD60S fire door and EN 1838 emergency luminaire pre-submitted on every basement cinema room

Compound NOC filed in your name and a Hilti PS 50 ferroscan run before any in-ceiling cut

Trinnov Altitude 16 calibration handed over with a written REW report and a 30-day return tune

Starting price

From AED 25,000

AED 4,800

How it works

How to build a 12-channel Dolby Atmos basement cinema in a Dubai villa that the Civil Defence approves on first walk.

Six steps we walk every Dubai Hills, Tilal Al Ghaf, Emirates Hills, Palm Signature and District One villa through, from the first slab scan to day 30 retune.

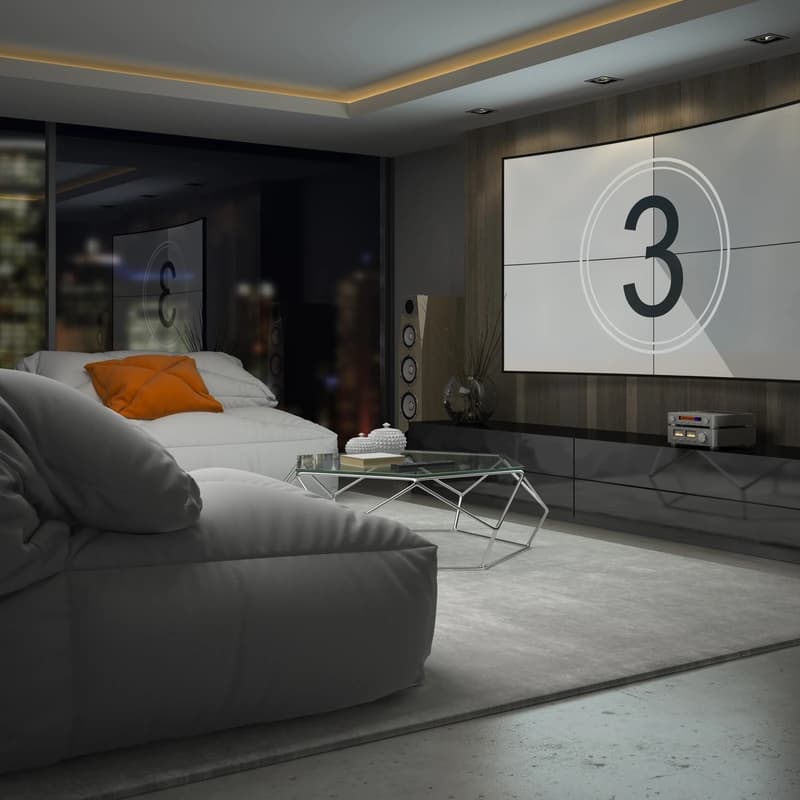

Site survey, slab scan and acoustic baseline on day one.
A senior designer and an acoustic engineer arrive together. Bosch GLM 50-27 CG laser for the room shell, Hilti PS 50 ferroscan on every post-tension slab in Marina, JBR or Burj Vista before a single Atmos position is drawn, REW with UMIK-2 for the room-mode baseline, Larson Davis XL2 for the ambient noise floor. One signed Room Spec Summary by end of day.
Acoustic and Atmos design, compound NOC filed in parallel (weeks 1 to 4).
A 35 page PDF design pack with REW room-mode prediction, sub layout to the Welti corner-and-midpoint pattern, screen sized for a 36° viewing angle, riser to the 61% rule, Lutron RadioRA 3 keypad layout, NC-25 HVAC silencer sizing. Compound no-objection letter filed with Emaar, My Nakheel, Damac, Meraas or Trakhees in your name, DCD pre-submission packaged in the same week.
DEWA notification and procurement (weeks 3 to 6).
A new dedicated 40A radial pulled from the existing villa DB on a Grade A or B electrical contractor notification through DEWA eServices, with TN-C-S earthing and a single bonded earth bar. JVC DLA-NZ900 at 8 to 12 weeks lead, Trinnov Altitude 16 at 10 to 14 weeks, Stewart Filmscreen or Screen Excellence at 4 to 12 weeks, Cineak Strato at 12 to 16 weeks. Customs cleared through Jebel Ali.
First-fix carpentry, isolation and fire compliance (weeks 6 to 10).
Double-stud walls with a 4 inch cavity, 80 kg/m³ Rockwool RW3 fill, RC-1 resilient channel, two layers of 16 mm fire-rated gypsum with Green Glue between every layer. Floating floor on Regufoam pucks where the room sits above another unit. Tenmat FF130 fire-rated enclosures dropped into every Atmos overhead position before the plasterer arrives. CL3 LSZH speaker cable and CMP plenum HDMI pulled with 1.5 m service loops.

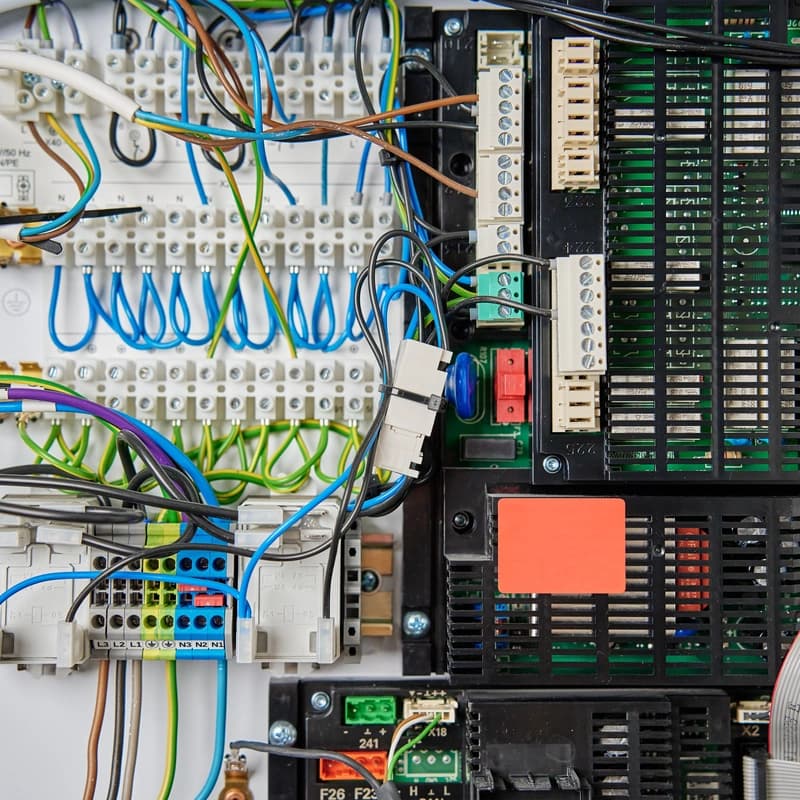

Speaker, rack and source install (weeks 10 to 11).
JBL Synthesis SCL-1 LCR mounted on isolated brackets behind a Screen Excellence Enlightor Neo acoustically transparent screen. JBL SCL-3 surrounds and SCL-7 overheads flush before the final skim with precision plaster ring kits, every penetration in a Tenmat FF130 enclosure. A 24U Middle Atlantic MRK rack with Furman Elite-15 PFi conditioner and a Torus AVR-20 isolation transformer for the amps. Every cable labelled per AVIXA F501.01.
Trinnov calibration, handover and a day 30 return tune.
Trinnov Altitude 16 Optimizer pass against a nine-position REW measurement, Welti sub integration, 75 dB(C) pink noise per channel at the primary listening seat, LFE +10 dB hot per Dolby spec, Murideo Six-A on the HDMI chain to keep latency under 40 ms. Crestron Home macro programmed across Apple TV 4K, Kaleidescape Strato C and the JVC NZ900, Adhan scene wired to the IACAD API, seven Lutron lighting scenes saved. We return at day 30 to retune.

frequently asked questions

Home theater, answered plainly.

Thirty real questions from Dubai villa and apartment owners on JVC laser projection, Trinnov calibration, Civil Defence approvals and Adhan logic. Last Updated: April 2026.

How much does a Dolby Atmos home cinema cost in a Dubai villa?

A family-room 5.1.2 upgrade in a Downtown Burj Vista or Bluewaters Bay apartment starts from AED 25,000 on a Marantz Cinema 30 and KEF Ci3160REFM in-walls. A dedicated 7.2.4 villa cinema in Dubai Hills Fairway or Tilal Al Ghaf runs AED 90,000 to AED 220,000 with a JVC DLA-NZ700 and a Stewart Filmscreen StudioTek 130 G4. A 9.4.6 reference room in Emirates Hills or Palm Jumeirah Signature lands at AED 250,000 to AED 650,000 with a JVC NZ900 and a Trinnov Altitude 16. Al Barari flagship rooms can reach AED 2.5M.

What is the difference between whole-home audio and a home cinema room?

Whole-home audio moves background music across the majlis, kitchen, pool deck and master bedroom on a Sonos or Crestron Home stack. A home theater is one room built for 115 dB peaks, double-stud STC-50 walls, a Dolby Atmos speaker plan, a Trinnov Altitude calibration and a JVC NZ900 projector behind a Stewart StudioTek screen. A Dubai Hills villa typically needs both, wired as one project so the IACAD Adhan scene fades every zone together, not the majlis while the cinema keeps playing.

Should I buy a JVC, a Sony or a Barco projector for my Dubai room?

JVC DLA-NZ700, NZ800 and NZ900 are our default for almost every Dubai basement and media room because the sealed D-ILA laser optical path survives coastal humidity at Palm Jumeirah Garden Homes and Marina without the magenta-green drift that lamp DLP suffers at month 18. Sony VPL-XW8000ES SXRD wins when lens-shift demands it in an oddly shaped Emirates Hills room. Barco Loki RGB laser lands on AED 800k plus flagship rooms in Al Barari where Rec.2020 colour volume and 5,000 lumens on a 180 inch Screen Excellence Enlightor Neo is the spec.

Can you retrofit a cinema into my existing villa, or does it need a new build?

We retrofit more than we new-build. Most Dubai Hills Fairway, Tilal Al Ghaf Elysian and Arabian Ranches III villas handed over in the last three years have a developer-spec basement shell that was sold empty. We treat the shell as a blank canvas, pour a Regufoam floating floor, double-stud the walls, drop a fire-rated gypsum ceiling on an independent metal grid, and pre-submit the FD60S door and EN 1838 luminaire to Dubai Civil Defence under FLSCOP 2018 before a single speaker cable is pulled. Retrofit timelines run 12 to 16 weeks.

Do I need a dedicated room, or can the family room be the cinema?

Both work. A Bluewaters Bay, Burj Vista or Address Boulevard great-room can carry a hidden 5.1.2 or 7.1.4 Atmos with KEF Ci200QR-THX in-ceilings, a Marantz Cinema 30, an SVS PB-3000 sub on neoprene pucks and motorised Lutron Sivoia QS blackout shading. A dedicated basement room in Dubai Hills or Tilal Al Ghaf can carry a full 9.4.6 reference build with a JVC NZ900 and eight Cineak Strato seats. The family-room tier starts at AED 25,000. The dedicated-room tier starts at AED 90,000.

Do I need a basement to do this properly?

No. The benefit of a basement is that the neighbours above and the Dubai Municipality 55/45 dB boundary rule get easier, not that the room sounds better. An Emirates Hills or Jumeirah Golf Estates ground-floor room with double-stud walls, a floating floor on Regufoam pucks and a Lorient-sealed STC-50 door performs to the same Trinnov calibration as a basement in Dubai Hills Mansion. The structural question is whether the slab is post-tension. In Marina, JBR or Downtown we run a Hilti PS 50 ferroscan before any in-ceiling Atmos coring is drawn.

What is the ROI against VOX Gold Class for a Dubai family?

A Friday-night family outing for six at VOX Gold Class at The Dubai Mall or Mall of the Emirates runs AED 600 to AED 720 plus food. A mid-tier AED 90,000 Dubai Hills basement on a JVC NZ700 and a Stewart StudioTek 130 G4 breaks even at 24 to 30 months of weekly screenings. On an Arabian Ranches III Caya cluster villa with nine extended-family members in residence during Eid, the math collapses inside a year. The room also carries Kaleidescape Strato C for reference 4K at AED 55 per title.

Can my Sky View or Marina apartment actually do Dolby Atmos?

Yes, with two caveats. The floor has to be a post-tension slab we scan first with a Hilti PS 50 before any in-ceiling cuts, because a sheared tendon at Address Sky View or Burj Vista costs an entire neighbour's ceiling and a Trakhees structural incident report. The Atmos overheads go in the dropped gypsum, not the slab. And the 55/45 dB Dubai Municipality boundary rule means the subwoofer caps out on a boundary-dB software limit after 10pm. Marantz Cinema 30 and KEF Ci200QR-THX overheads deliver a clean 5.1.2 or 7.1.4.

What should I look for in a Dubai cinema installer?

Four things. A Trinnov or Dirac Live ART certification you can verify with the calibrator's name. A DCD FLSCOP 2018 pre-submission workflow that pre-submits the FD60S door datasheet and EN 1838 luminaire spec before site work. A published AED price ladder rather than a quote-only wall. And a written calibration report at handover with nine REW measurement positions, Trinnov profile saved, and a 30-day return tune booked on the same invoice. We publish all four on this page. No other Dubai integrator does.

What is the AED 250-500k integrator-failure rebuild story you mention?

It is the single most common live brief in Dubai this year. Owners paid 50% deposit of AED 205,000 to AED 350,000 to a mid-tier Al Quoz outfit with a Crestron badge and a four-person field team. JBL Synthesis kit and a JVC projector landed, the Kaleidescape Strato sat unmounted in a cupboard, the Trinnov calibration was never run, the lead programmer left the company, and eleven months of silence followed. We finish three of these every quarter across Tilal Al Ghaf, Dubai Hills and Emirates Hills. We calibrate what landed and hand over the folder.

How does the Adhan-aware pause actually work?

A small Crestron Home or Control4 driver polls the IACAD (Islamic Affairs and Charitable Activities Department) prayer-time API five times daily for Fajr, Dhuhr, Asr, Maghrib and Isha times in your Dubai geolocation. At Adhan the driver fades the Trinnov Altitude 16 audio over 10 seconds, pauses the Apple TV 4K or Kaleidescape Strato C transport, holds for the prayer duration, then fades back in. The scene is opt-in per household at commissioning. It works in a Dubai Hills basement and in a Palm Jumeirah Signature great-room the same way.

How reliable is the IACAD prayer-times API integration?

Reliable enough that we ship it as the default on every build. The IACAD feed is a JSON endpoint the Crestron Home driver caches daily at 3am local, with a seven-day fallback table written to the CP4 flash so a DEWA power blip or Etisalat drop does not break the Maghrib fade. We log every scene trigger to the as-built folder so you can audit a Friday-family-night pause at 6:42pm against the actual Adhan time. No Western Crestron or Control4 integrator ships this. It is the most-citeable Dubai feature on the page.

Should I build 5.1.4, 7.2.4 or 9.4.6 Atmos?

Room volume drives the answer. A 4m by 3m Downtown Burj Vista family-room carries 5.1.2 cleanly on a Marantz Cinema 30. A 6m by 5m Dubai Hills or Tilal Al Ghaf basement carries 7.2.4 on a Marantz AV10 or Anthem AVM 90 with dual SVS PB-3000 subs. A 9m by 6m Emirates Hills or Palm Signature reference room carries 9.4.6 on a Trinnov Altitude 16 with four JL Audio Fathom f113 v2 subs in a Welti corner-and-midpoint pattern. We size the channel count to the room, never the brochure.

What is an acoustic-transparent screen and when does it make sense?

An acoustic-transparent (AT) screen has a woven or perforated fabric you can put JBL Synthesis SCL-1 or B&W 803 D4 LCR speakers directly behind at ear height for the front row, so voices anchor to the picture. We use Screen Excellence Enlightor Neo on reference tier builds in Emirates Hills and Palm Signature, matched to a Trinnov Altitude 16 calibration that compensates for the fabric's 2 to 3 dB high-frequency roll-off. Below AED 150,000 a Stewart Filmscreen StudioTek 130 G4 non-AT screen with the LCR below it is the better spend.

Trinnov vs Dirac Live ART vs Lyngdorf RoomPerfect, which do you run?

Trinnov Altitude 16 Optimizer v4 is our default on every reference build because the nine-microphone capture and independent per-seat filters hit the Dubai Hills or Tilal Al Ghaf basement harder than any stereo room-correction algorithm. Dirac Live ART is the alternative on a Storm Audio ISP MK3 rig at the Al Barari flagship tier. Lyngdorf RoomPerfect is a stereo-room tool, excellent on a two-channel listening room but not an Atmos processor. We write the calibration report into your handover folder.

What lighting control do you ship with the room?

Lutron RadioRA 3 for villa builds in Dubai Hills, Tilal Al Ghaf and Arabian Ranches III. Lutron HomeWorks QSX for Emirates Hills and Palm Jumeirah Signature reference rooms where the backbone covers the whole villa. Ketra D3 tunable-white at the cove and step LEDs for dim-to-warm that reads like a real cinema at 2200K. Seven scenes saved before handover: Bright Clean, Safe Walk, Seat, Trailer, Movie, Pause and Post-Roll, each on a dedicated Lutron keypad button next to the Crestron TSR-310 handheld.

Kaleidescape vs Apple TV 4K vs Plex, which do I actually use?

All three, on a single Trinnov Altitude input map and one Crestron Home page. Kaleidescape Strato C with a Terra 8 TB to 88 TB server for lossless 4K HDR library ownership at AED 55 per title with original Dolby Atmos tracks. Apple TV 4K (3rd gen) for Netflix, Disney Plus, Apple TV Plus and OSN Plus. A Panasonic DP-UB9000 for UHD discs the Kaleidescape catalogue does not carry yet. An NVIDIA Shield TV Pro running Plex for your own rips and the Hindi, Tamil or Urdu library. The housekeeper sees one picker.

How do you fix lip-sync drift on Apple TV or PS5?

Lip-sync breaks most often when a matrix switcher adds latency. The AED 320k Emirates Hills rebuild we inherited had 14 ms of drift because Crestron NVX was in the HDMI path. We specify direct HDMI 2.1 fiber (Ruipro 8K) from source to Trinnov Altitude 16 to JVC NZ900, with NVX matrix used only where matrixed switching is genuinely needed. We run a Murideo Six-A sync generator on the HDMI chain at commissioning to verify under 40 ms end-to-end, and lock the per-source delay in the Trinnov Altitude profile.

4K HDR, Dolby Vision LIVE and HDR10+: which does Dubai content actually carry?

Dolby Vision LIVE arrives on Kaleidescape Strato C for a growing share of the 4K library, on Apple TV 4K for Apple TV Plus and Disney Plus originals, and on some OSN Plus titles. HDR10 is the universal baseline that every JVC DLA-NZ900, Sony VPL-XW8000ES and Barco Loki handles without issue. HDR10+ appears on select Prime Video titles and is carried by the Panasonic DP-UB9000. We calibrate the JVC against an HDR10 reference at 4000 nits with the Trinnov gamma curve and let Dolby Vision dynamic metadata drive the rest.

Can one calibration serve both the cinema and the adjacent family room?

No, they run as separate zones with separate profiles. The cinema gets a Trinnov Altitude 16 calibration and a JBL Synthesis amp stack. The Dubai Hills family room runs a Sonos or Crestron Home audio zone off a Sonos Amp or NAD CI 8-150. A single Crestron Home page groups both so a Maghrib fade hits every zone together through the IACAD API. A housekeeper can hand off the same Kaleidescape movie from the cinema to the family room for a halftime break without touching the projector remote.

How long does a full cinema build actually take?

Twelve weeks for a mid-tier AED 90,000 to AED 220,000 Dubai Hills or Tilal Al Ghaf basement build. Week 1 site survey and slab scan. Weeks 1 to 3 design. Weeks 2 to 4 compound NOC and DCD pre-submission in parallel. Weeks 3 to 6 procurement (JVC NZ700 is 8 to 12 weeks lead, Trinnov Altitude 16 is 10 to 14 weeks). Weeks 6 to 10 first-fix and isolation. Weeks 10 to 11 speakers and rack. Week 12 Trinnov calibration and handover. Day 30 return tune. Reference tier in Emirates Hills runs 16 to 24 weeks.

Who files the compound NOC and the DCD pre-submission?

We do, in your name. Emaar Community Management for Dubai Hills Fairway, Emirates Hills and Arabian Ranches III at 7 to 15 working days, AED 1,500 to AED 5,000. My Nakheel for Palm Jumeirah Signature and Garden Homes at 10 to 20 working days. Damac Living for Damac Hills and Tilal Al Ghaf at 7 to 14 days. Meraas for Bluewaters Bay and City Walk at 10 to 15 days. Trakhees CD plus Trakhees Building for Palm fronds at 21 to 45 days. DCD pre-submission with the FD60S datasheet happens in the same week.

Why do I need an FD60S door and an EN 1838 emergency luminaire?

Because Dubai Civil Defence FLSCOP 2018 Chapter 5 requires a 60-minute fire-rated door (FD60S) on every basement cinema with a single egress, and every Dubai Hills, Tilal Al Ghaf, Emirates Hills and Al Barari basement handover we have inspected is missing the EN 1838 emergency luminaire and the EN ISO 7010 photo-luminescent exit signage. A heavy acoustic door without the FD60S certificate gets rejected at completion, like the AED 240,000 Dubai Hills Fairway room that waited six weeks for a rated door. We pre-submit every datasheet.

What cable do you run and why does it matter for Civil Defence?

CL3 LSZH speaker cable (West Penn or Belden) on every run and CMP plenum-rated HDMI where the tower demands return-air plenum ceilings at Burj Vista or Address Sky View. CL3 LSZH is low-smoke zero-halogen, which is what Dubai Civil Defence requires on any cable crossing a fire-rated partition. Every in-ceiling Atmos speaker penetration sits inside a Tenmat FF130 fire-rated enclosure to maintain the one-hour compartmentation across your basement ceiling. Cheap CL2 generic cable technically invalidates the building's DCD handover certificate in Dubai Hills or Tilal Al Ghaf.

Do I need a Hilti ferroscan for my Marina or Bluewaters apartment?

Yes, absolutely, before any in-ceiling cut. Marina, JBR, Downtown Burj Vista, Bluewaters Bay and Address Sky View all sit on post-tension concrete slabs where a sheared tendon drops an entire neighbour's ceiling and triggers a Trakhees structural incident report you do not want to file. We run a Hilti PS 50 ferroscan on the slab at the site survey, map every tendon and rebar, and route the Atmos overheads into the dropped gypsum ceiling where the slab cannot take a core. Same acoustic outcome, no structural risk, no permit exposure.

How do you stop the neighbour calling 901 at 11pm?

With double-stud walls on a 4 inch cavity, 80 kg/m³ Rockwool RW3 fill, RC-1 resilient channel, two layers of 16 mm fire-rated gypsum with Green Glue between, target STC-50 wall-to-wall, and a floating floor on Regufoam pucks where the cinema sits above another unit. The JBR Sadaf-tower rebuild we did last year went from STC 38 to STC 54 and the downstairs neighbour's complaint dropped. Dubai Municipality Local Order 61 caps noise at 55 dB(A) day and 45 dB(A) night at the property line. We measure at completion and hit both.

Do I need a dedicated DEWA circuit for the amp rack?

Yes. A reference amp rack pulls 3.5 to 6 kW continuous and 8 to 10 kW peak on LFE transients, which a shared villa circuit cannot hold without the lights dimming on a bass hit. We pull a new dedicated 40A radial from the main villa DB to the cinema sub-DB on a Grade A or B electrical contractor notification through DEWA eServices, with TN-C-S earthing and a single bonded earth bar. A Torus AVR-20 isolation transformer on the amps and a Furman Elite-15 PFi conditioner on the sources sit downstream. Separate audio ground rods are non-compliant.

Why do you refuse grey-market US-spec kit?

Because every projector, AVR, amplifier and display sold in the UAE requires ECAS (Emirates Conformity Assessment Scheme) and G-Mark (MOIAT) certification, and a US-spec JVC NZ900 or Sony VPL-XW8000ES without the 230V 50Hz SMPS fries the laser driver and HDMI board the first time UAE power hits it. There is no regional warranty path. We source JVC, Sony, Barco, Trinnov, Kaleidescape, JBL Synthesis, B&W and Lutron through the authorised regional dealer channel only, for full UAE warranty on every serial number in your as-built folder.

What is in the handover folder?

A printed and digital binder delivered on closeout day. Nine-position REW measurement plots before and after calibration. The Trinnov Altitude 16 profile saved to USB and to the CP4. The full equipment list with serial numbers. Emaar, My Nakheel, Damac, Meraas or Trakhees NOC letters. The DCD FLSCOP 2018 acceptance. ECAS and G-Mark certificates on every piece of kit. Lutron keypad layout, Crestron Home macro export, IACAD API key, Kaleidescape library credentials. Warranty cards. A 10-minute video your Dubai Hills housekeeper or Tilal Al Ghaf family member can rewatch.

What is a day 30 return tune and why do you include it?

A cinema room settles after the first month of use. Acoustic fabrics absorb differently once Dubai's 60 to 95% summer humidity reaches equilibrium with the Rockwool RW3 behind them. Cineak Strato seats compress and change the listening position height by 5 to 10 mm. Primary listening seats emerge from family use. At day 30 our Trinnov-certified calibrator returns with the UMIK-2, runs the nine-position REW pass again, retunes the Trinnov Altitude 16 profile, refits an absorber if needed, and resaves. No other Dubai integrator publishes a return-tune commitment.

Let’s walk your cinema.

A senior designer and an acoustic engineer will walk your basement, family room or full villa, scan the slab where it matters, and price the room honestly. No deposit, no pressure, no paperwork yet.
